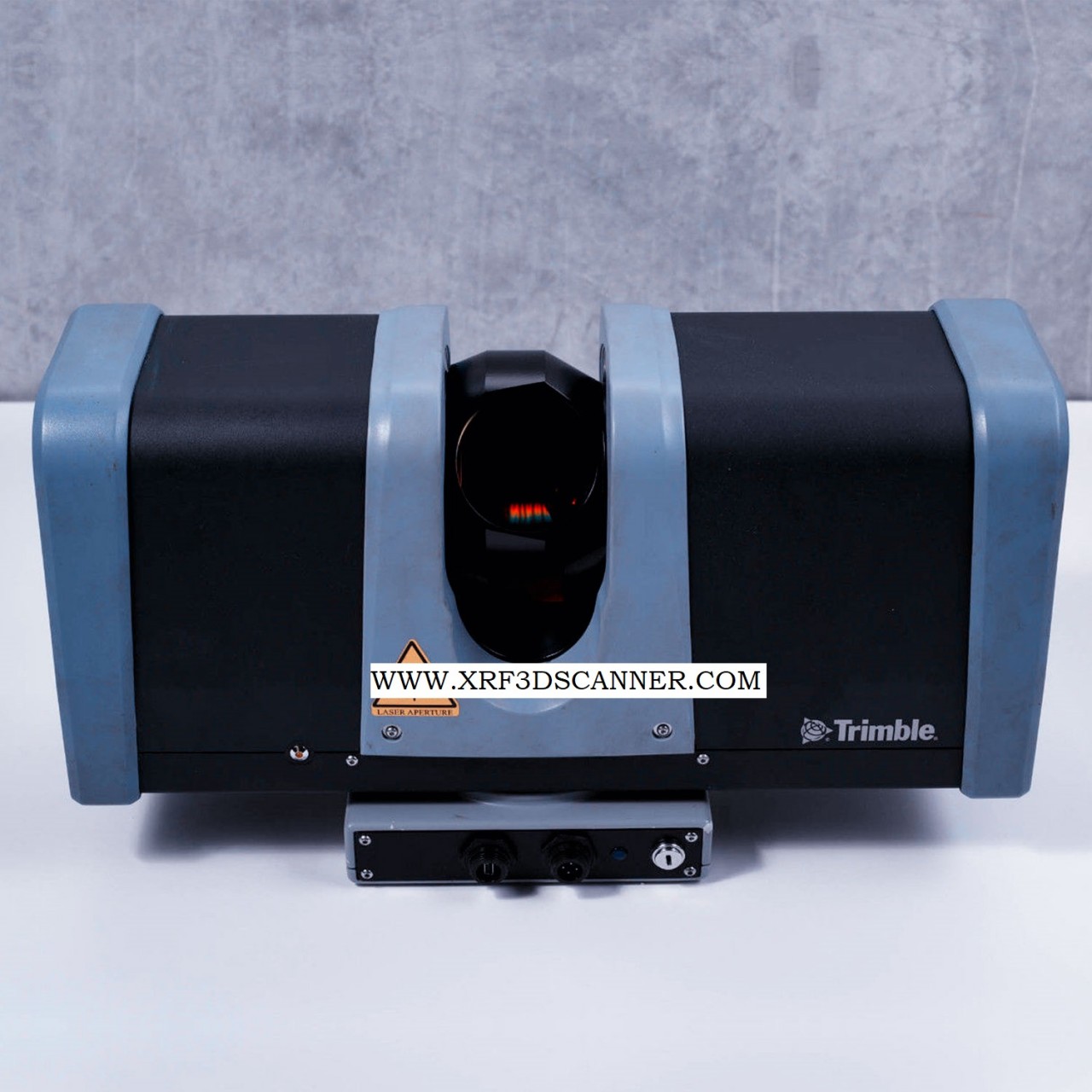

Trimble FX 3D Scanner

The Trimble FX is a versatile and advanced 3D laser scanner designed for capturing high-quality 3D data in various applications, including surveying, construction, and infrastructure management. Here are the key features and specifications:

Key Features

• High-Precision Scanning: The Trimble FX provides high accuracy with measurements typically around 3 mm, making it suitable for detailed scanning tasks.

• Fast Data Capture: Capable of capturing up to 1 million points per second, it enables quick data acquisition for large areas.

• Integrated Imaging: The scanner combines laser scanning with high-resolution imagery, allowing users to create rich, textured 3D models.

• Portable Design: Weighing approximately 4.5 kg (10 lbs), the Trimble FX is designed for easy transport and use in various field conditions.

• User-Friendly Interface: The scanner features an intuitive interface that simplifies operation, making it accessible for both experienced and novice users.

• Versatile Applications: Ideal for a wide range of applications, including architecture, civil engineering, and historical preservation.

Technical Specifications

• Scanning Technology: Laser triangulation
• Field of View: 360° horizontal and 270° vertical
• Range: Effective scanning range of up to 100 meters (328 feet)
• Data Output Formats: Supports various formats, including LAS, PLY, and OBJ
• Connectivity: USB and Wi-Fi options for data transfer

Applications

• Construction and Engineering: For as-built documentation, site analysis, and progress monitoring.
• Surveying: In topographic surveys and land development projects.
• Cultural Heritage: For digitizing historical sites and artifacts.
• Infrastructure Management: In monitoring and assessing existing structures.

The Trimble FX 3D Scanner stands out for its ability to deliver high-quality, detailed 3D data quickly and efficiently, making it a valuable tool for professionals across multiple disciplines.

Includes:

• Trimble FX 3D Scanner
• Trimble Realworks License
• AC Power Supply 110/220V
• Power on key
• USB2 cable (3 m)
• 5x Reference sphere set and travel case
• 2x Amstron MedXP 140 Li-Ion batteries and cables/charges
• 1x Seco telescopic tripod
• 1x Trimble tripod dolly
• Instrument case
