KSCAN20 3D Scanner: Metrology and Photogrammetry Made Easy

The KSCAN20 3D Scanner is an amazing tool that helps people capture three-dimensional images of objects. This scanner is used in many industries, such as manufacturing, engineering, and even art.

A 3D scanner is a device that takes pictures of an object from different angles and turns those images into a three-dimensional model. Think of it like taking a lot of photos of a toy from every side and then using those photos to create a digital version of that toy on a computer.

How Does the KSCAN20 Work?

The KSCAN20 uses a combination of laser scanning and photogrammetry. Let’s break down these terms:

• Laser Scanning: This technique uses lasers to measure the distance between the scanner and the object. The scanner sends out laser beams that bounce back when they hit the object. By measuring how long it takes for the laser to return, the scanner can figure out how far away the object is.

• Photogrammetry: This method uses regular photos to create 3D models. The scanner takes many pictures of the object, and special software combines these images to create a detailed 3D model.

Why is the KSCAN20 Special?

The KSCAN20 is special for several reasons:

1. High Precision: The KSCAN20 can capture tiny details very accurately. This is important for industries like manufacturing, where even a small mistake can cause big problems.

2. Fast Scanning: The scanner can quickly capture a lot of information. This means that it can scan large objects or areas in a short amount of time, saving users both time and effort.

3. User-Friendly: The KSCAN20 is designed to be easy to use. It has a simple interface that anyone can understand, making it accessible for beginners and experts alike.

4. Portable: The scanner is lightweight and easy to carry, which makes it perfect for fieldwork. Whether you’re in a factory or out in the field, you can take the KSCAN20 with you.

5. Advanced Software: The scanner comes with powerful software that helps users process and analyze the scanned data. This software allows users to create 3D models, measure dimensions, and generate reports.

Applications of the KSCAN20 3D Scanner

The KSCAN20 has many applications across different fields. Here are some of the most common uses:

1. Manufacturing

In manufacturing, the KSCAN20 is used for quality control. This means checking that parts are made correctly. For example, if a car part is slightly too big or too small, it could cause problems when putting the car together. The KSCAN20 helps manufacturers ensure that every part meets the required specifications.

2. Aerospace

In the aerospace industry, safety is a top priority. The KSCAN20 is used to inspect airplane parts to make sure they are safe and reliable. By scanning these components, engineers can find any flaws and fix them before the parts are used in an aircraft.

3. Automotive

The automotive industry also benefits from the KSCAN20. It is used for reverse engineering, which means creating a digital model of an existing part. This is useful when companies need to replicate a part that is no longer made. The KSCAN20 makes it easy to create accurate models of these parts.

4. Cultural Heritage

The KSCAN20 is not just for factories and engineering; it is also used in art and history. Museums and archaeologists use the scanner to document historical artifacts and sites. By creating 3D models, they can preserve these items digitally. This is important for education and research, allowing people to study artifacts without touching them.

5. Construction

In construction, the KSCAN20 helps capture the current state of buildings. This is known as "as-built documentation." By scanning a building, architects and engineers can create accurate models that show how the building was actually constructed. This information is useful for renovations and future projects.

Advantages of Using the KSCAN20

The KSCAN20 offers several advantages that make it a great choice for professionals:

1. Cost-Effective

While high-quality scanners can be expensive, the KSCAN20 provides excellent value for its price. It combines advanced technology with user-friendly features, making it a smart investment for businesses.

2. Versatile

The KSCAN20 can be used for a wide variety of applications. Whether you need to scan small parts or large structures, this scanner can handle it all. Its versatility makes it suitable for many different industries.

3. High-Quality Output

The scanner produces high-resolution images and accurate measurements. This ensures that users get the best possible results, whether they are creating models for engineering or preserving historical artifacts.

4. Easy to Learn

Even if you have never used a 3D scanner before, the KSCAN20 is easy to learn. Its intuitive interface and helpful software make it simple to get started. This means that users can quickly become proficient and start using the scanner effectively.

How to Use the KSCAN20 3D Scanner

Using the KSCAN20 is straightforward. Here’s a step-by-step guide:

Step 1: Set Up the Scanner

First, make sure the scanner is charged and ready to go. Find a flat surface to place the object you want to scan. If the object is large, you may need to move the scanner around it.

Step 2: Choose the Scanning Mode

Decide whether you want to use laser scanning or photogrammetry. Each mode has its benefits, so choose the one that best fits your needs.

Step 3: Start Scanning

Follow the instructions on the scanner’s display to begin scanning. Move the scanner around the object, making sure to capture it from all angles. If you are using photogrammetry, take plenty of pictures from different positions.

Step 4: Process the Data

Once you have finished scanning, connect the scanner to your computer. Use the provided software to process the scanned data. The software will help you create a 3D model and allow you to make measurements.

Step 5: Save and Share

After processing the data, save your 3D model in the desired format. You can share it with colleagues, use it for presentations, or even print it using a 3D printer!

Conclusion

The KSCAN20 3D Scanner is an incredible tool that makes capturing three-dimensional images easy and efficient. With its advanced technology, user-friendly design, and versatility, it is perfect for a wide range of applications. Whether you are working in manufacturing, aerospace, automotive, cultural heritage, or construction, the KSCAN20 can help you achieve accurate results.

By understanding how this scanner works and its various applications, you can appreciate its importance in today’s world. The KSCAN20 not only helps professionals do their jobs better but also preserves our history and advances technology. So, whether you are a student, a hobbyist, or a professional, the KSCAN20 3D Scanner is a fantastic tool to explore the fascinating world of 3D scanning!

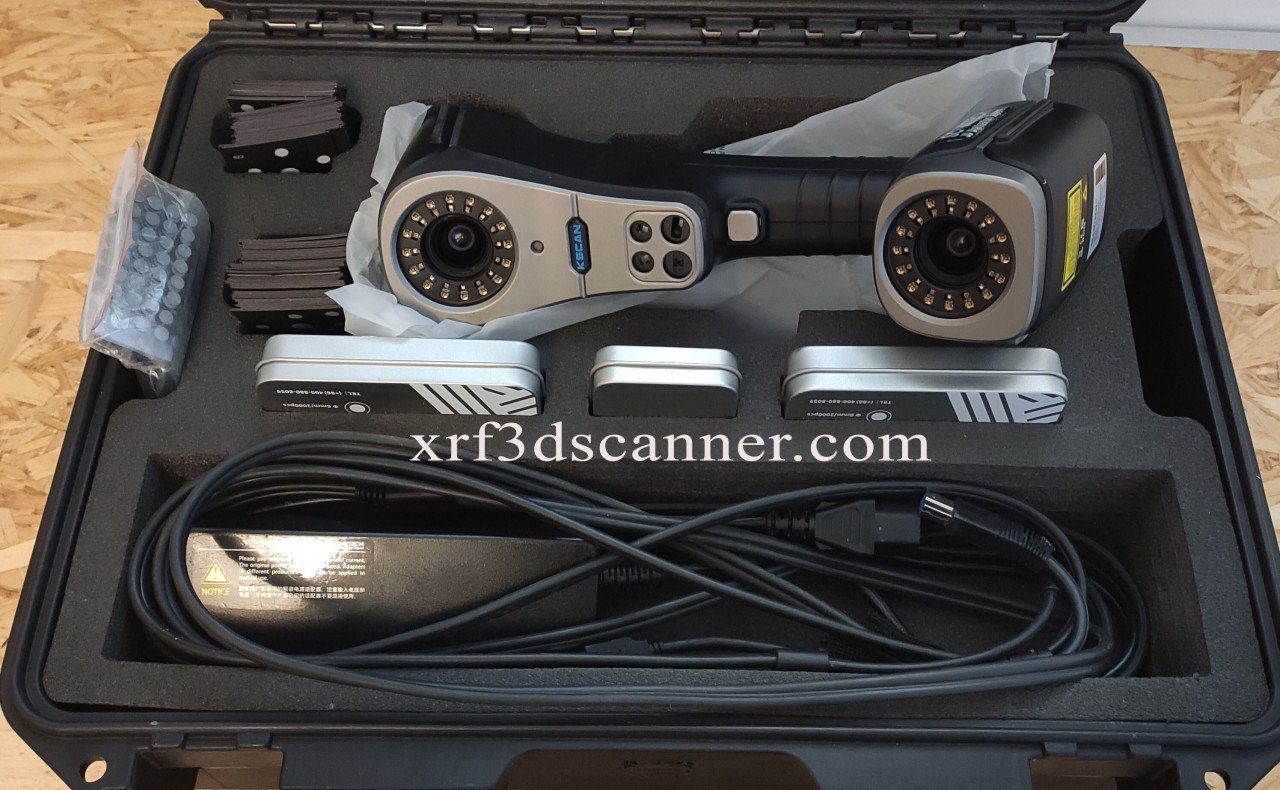

Included:

• Scantech Kscan20 with software:
• 14 red lasers for fast scanning
• 1 red laser for deep hole scanning
• 5 blue lasers for detailed scanning
• Photogrammetry for large scanning up go 10 meters squared parts:
• Resolution: .01mm =.0005inch
• Accuracy .02mm = .001 inch
• Calibration plate included
• Hard carrying case is included
• All cables are included
• All software to operate scanner is included
